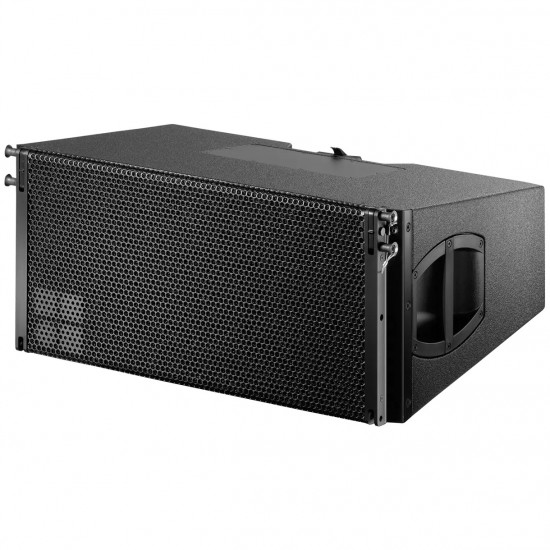

d&b audiotechnik V12 Loudspeaker

line array  - technology - sound - d&b audiotechnik V12 Loudspeaker Line Array Loudspeakers
d&b audiotechnik V12 Loudspeaker


d&b audiotechnik V12 High performance 2 x 10"/1 x 8"/2 x 1.4" passive line array loudspeaker.


For more information please open the following link: V12 Technical Data

  • Condition: New
  • Stock: Price on Request
  • Model: N-dbau-v12-0001
  • Location: Bulgaria,Greece
0.00€
Price Ex Vat

Available Options

line array

technology

sound

V12 Loudspeaker

The V12 is a 3-way passive design housing 2 x 10" LF drivers, one hornloaded 8" MF driver and two 1.4" exit HF compression drivers with 2.5" voicecoils mounted to a dedicated waveshaping device. The symmetrical dipolar arrangement of the neodymium LF drivers around the centrally mounted coaxial MF and HF components allows a smooth overlap of the adjacent frequency bands in the crossover design. This results in an exceptional 120° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz.
The mechanical and acoustical design enables flown vertical arrays of up to twenty four loudspeakers. It can be used in columns of purely V12 loudspeakers or combined with V8s and / or with V-SUBs.
The cabinet is constructed from marine plywood and has an impact and weather protected PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. Each side panel incorporates a handle, while two additional recessed grips are provided at the rear bottom of the cabinet.

Speaker Diameter
LF Nominal Diameter2x 10"
MF Nominal Diameter8"
HF Nominal Diameter2x 1.4"
Nominal Impedance
Loudspeaker Nominal Impedance8 Ohms
Power Capacity
Loudspeaker Power Capacity (RMS/peak 10 ms)500/2000 W
Frequency Range
Frequency Range67 Hz - 18 kHz
Dispersion
Dispersion Angle120°
SPL
SPL Max142 dB
SPL Min139 dB
