d&b audiotechnik Bi8-SUB

subwoofers - technology - sound - d&b audiotechnik Bi8-SUB Subwoofers
d&b audiotechnik Bi8-SUB


d&b audiotechnik Bi8-SUB Installation specific ultra compact 2 x 6.5" subwoofer.


For more information please open the following link: Bi8-SUB Technical Data

  • Condition: New
  • Stock: Price on Request
  • Model: N-dbau-bi8-sub-0001
  • Location: Bulgaria,Greece
0.00€
Price Ex Vat

Available Options

subwoofers

technology

sound

Bi8-SUB

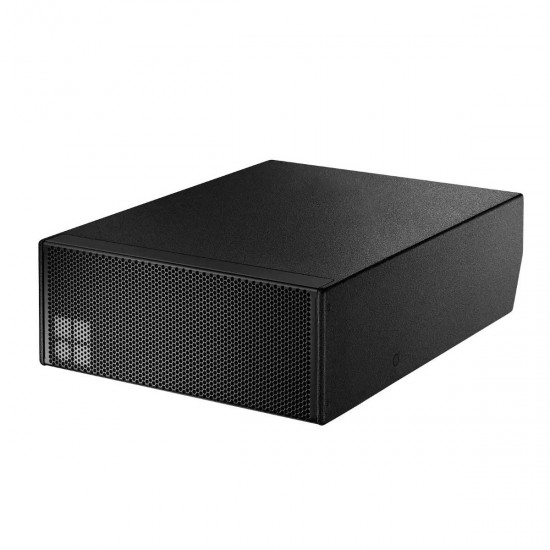

The Bi8-SUB is an ultra compact subwoofer that pairs with the established d&b xC, xS and E-Series loudspeakers. The Bi8-SUB is the installation version of the B8 subwoofer and differs only in cabinet construction and mounting hardware. The Bi8-SUB features two 6.5” drivers housed within a bass-reflex cabinet design. Its low height (170 mm) makes it an ideal solution for small scale applications that require an extended low frequency response while still achieving high Sound Pressure Levels. The frequency response extends from 43 Hz to 170 Hz. When operating in 100 Hz mode, the upper operating frequency of the subwoofer is reduced from 170 Hz to 125 Hz.
The Bi8-SUB can be flown either horizontally or vertically. Two M8 threaded inserts are incorporated, one on each side panel to allow the attachment of a dedicated flying bracket.
The enclosure is constructed from marine plywood with an impact resistant black paint finish. The front of the cabinet is protected by a rigid metal grill backed by an acoustically transparent foam. The rear panel incorporates two NL4 connectors and a two pole screw terminal block. The Bi8-SUB is also available in Special Colour (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP55 rating and enables operation of loudspeakers in changing ambient conditions.

Speaker Diameter
LF Nominal Diameter2 x 6.5"
Nominal Impedance
Loudspeaker Nominal Impedance8 Ohms
Power Capacity
Loudspeaker Power Capacity (RMS/peak 10 ms)200/800 W
Frequency Range
Frequency Range43 Hz - 170 Hz
Dispersion
Dispersion AngleOmni directional
SPL
SPL Max122 dB
SPL Min120 dB
