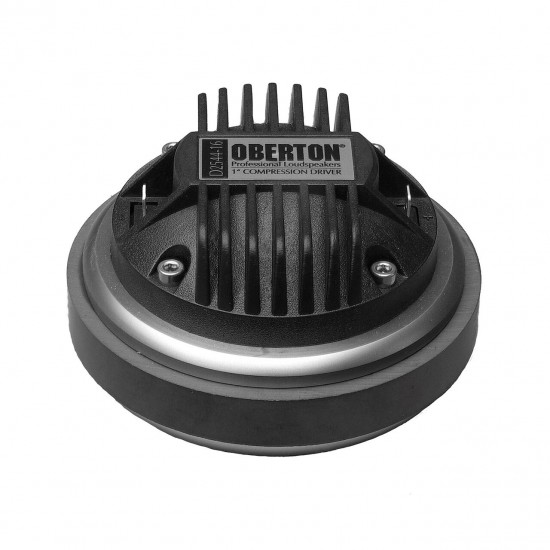

OBERTON D2544


OBERTON D2544 1” High Frequency Compression Driver, 1.75” voice coil, 40 W, 108 dB, 8 Ohm

  • Condition: New
  • Stock: Pre-Order
  • Model: D2544
0.00€
Price Ex Vat

speakers

technology

sound

The D2544 high frequency compression driver features an integral dome and suspension made of special polyester, providing exceptional high output with low distortion and frequency response with high linearity. The voice coil assembly is easily fielded replaceable without soldering.

Speaker Diameter
HF Nominal Diameter1" / 25.4 mm
Nominal Impedance
HF Nominal Impedance8 / 16 Ohms
DC Resistance5.15 / 10.8 Ohms
Minimum Impedance
HF Minimum Impedance6.4 / 12.7 Ohms
Power Capacity
HF Power Capacity(1-20 kHz) 40 W
Program Power
HF Program Power(1-20 kHz) 80 W
Sensitivity
HF Sensitivity(2 kHz - 15 kHz) 108 dB/W/m
Frequency Range
HF Frequency Range1000 - 20000 Hz
Voice Coil Diameter
HF Voice Coil Diameter44 mm (1.75 in.)
Voice Coil Material
HF Voice Coil MaterialAluminium
Voice Coil Former
HF Voice Coil FormerKapton™
Crossover
Recommended Crossover1.5 kHz or higher 12 dB/oct.min
Cone Material
Diaphragm MaterialSandwich Polyester
Magnet Material
HF Magnet MaterialFerrite
Flux Density
HF Flux Density1.65 T
