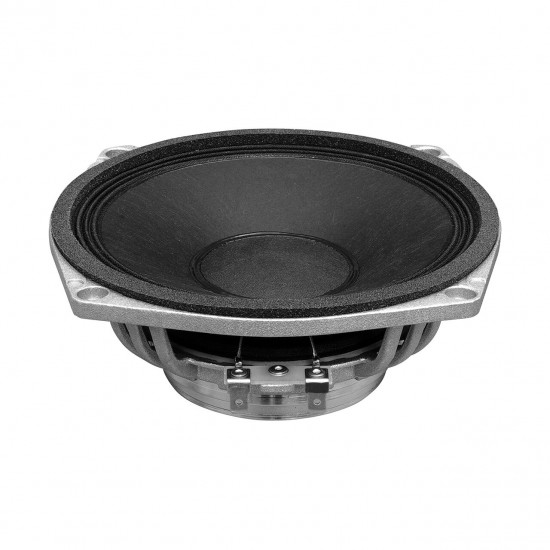

OBERTON 6NM150
OBERTON 6NM150 6.5 ” Neodymium Midrange, 1.75 ” voice coil, 150 W, 97 dB, 8 Ohm
- Condition: New
- Stock: Pre-Order
- Model: 6NM150
0.00€
Price Ex Vat
speakers
technology
sound
The 6NM150 is high efficiency, high power midrange neodymium loudspeaker, specially designed to use in 3 way boxes and line array systems. It features 44 mm aluminium voice coil, vented aluminium die cast frame with powerful neodymium magnet structure, which achieved very light weight of the speaker.
The top and back plates are treated with special high quality epoxy electro-deposition coating, which extremely improves the corrosion resistance of the speaker.
| Speaker Diameter | |
| LF Nominal Diameter | 6.5" / 170 mm |
| Nominal Impedance | |
| LF Nominal Impedance | 8 Ohms |
| Minimum Impedance | |
| LF Minimum Impedance | 7.22 Ohms |
| Power Capacity | |
| LF Power Capacity AES | 150 W |
| Program Power | |
| LF Program Power | 300 W |
| Sensitivity | |
| LF Sensitivity | (500-5000 Hz) 97 dB/W/m |
| Frequency Range | |
| LF Frequency Range | 200 - 5000 Hz |
| Voice Coil Diameter | |
| LF Voice Coil Diameter | 44 mm (1.75 in.) |
| Voice Coil Material | |
| LF Voice Coil Material | Aluminium |
| Voice Coil Former | |
| LF Voice Coil Former | Kapton™ |
| V.C. Winding Depth | |
| LF V.C. Winding Depth | 8 mm |
| Magnet Gap Depth | |
| LF Magnet Gap Depth | 7 mm |
| Cone Material | |
| LF Cone Material | Paper |
| Basket Material | |
| LF Basket | Die cast aluminium |
| Magnet Material | |
| LF Magnet Material | Neodymium |
| Flux Density | |
| LF Flux Density | 1.42 T |
