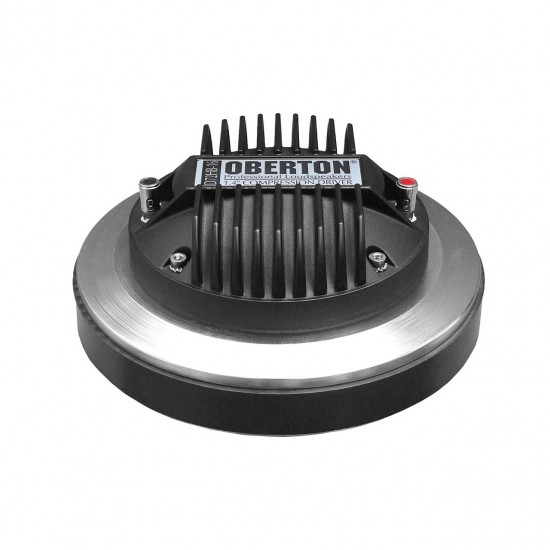

OBERTON D72HB
OBERTON D72HB 1.4” High Frequency Compression Driver, 2.85” voice coil, 100 W, 109.5 dB, 8 Ohm
- Condition: New
- Stock: Pre-Order
- Model: D72HB
0.00€
Price Ex Vat
speakers
The D72HB is 1.4” high frequency compression driver, which features a Carbon Hybrid dome and high damped vented suspension, providing exceptional high output with low distortion and frequency response with high linearity. The new hybrid technology reduces breakup modes and ensures perfect Waterfall Response of
The Driver. These new dome materials provide excellent vocal reproduction with very warm and clean sounding. It is designed for a wide variety of applications in high quality, high power professional reinforcement systems and stage monitors
| Speaker Diameter | |
| HF Nominal Diameter | 1.4" / 36 mm |
| Nominal Impedance | |
| HF Nominal Impedance | 8 / 16 Ohms |
| DC Resistance | 6.9 / 9.5 Ohms |
| Minimum Impedance | |
| HF Minimum Impedance | 8.5 / 11.74 Ohms |
| Power Capacity | |
| HF Power Capacity | (1-20 kHz) 100 W |
| Program Power | |
| HF Program Power | (1-20 kHz) 200 W |
| Sensitivity | |
| HF Sensitivity | (1 kHz - 10 kHz) 109.5 dB/W/m |
| Frequency Range | |
| HF Frequency Range | 500 - 18000 Hz |
| Voice Coil Diameter | |
| HF Voice Coil Diameter | 72 mm (2.85 in.) |
| Voice Coil Material | |
| HF Voice Coil Material | Copper Clad Aluminium Wire |
| Voice Coil Former | |
| HF Voice Coil Former | Kapton™ |
| Crossover | |
| Recommended Crossover | 1 kHz or higher 12 dB/oct.min |
| Cone Material | |
| Diaphragm Material | Carbon Composite |
| Magnet Material | |
| HF Magnet Material | Ferrite |
| Flux Density | |
| HF Flux Density | 1.85 T |
